Description:

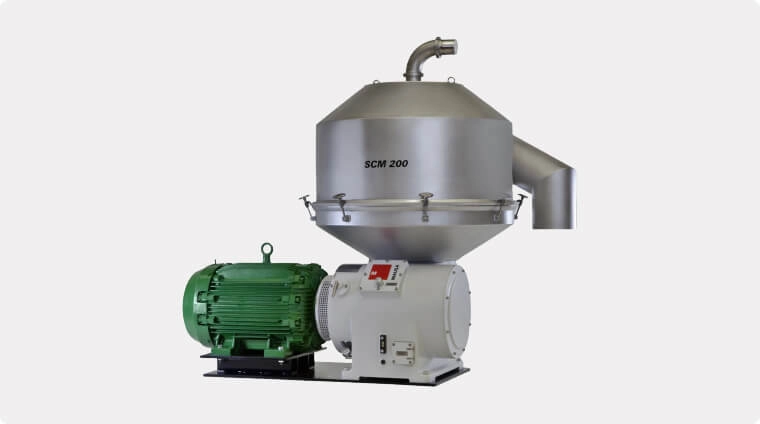

• Designed for the separation and continuous discharge of solids (yeast) in alcohol distilleries.
• It has an electric drive motor, self-cleaning system, vibration monitoring system, temperature monitoring system, rotation sensor, three-way valve, water cooling, special tool kit.

General Specifications:

• Drive: 150 CV / 110 kW electric motor, 1775 rpm and frequency inverter.
• Cooling: Through water heat exchanger, immersed in oil.
• Technical Characteristics:
  • Hydraulic capacity up to 270 m3 / h
  • Operating capacity up to 200 m3 / h (for 8% to 12% yeast concentrations)
  • Gravity discharges
• Self-cleaning system: Longer operating time without the need to disassemble to clean the rotor.
• Performance: The actual flow of work will depend on several variables such as: viscosity, temperature, feed concentration, inlet pressure and degree of concentration required.
